C094X1/4TC Ovolo 4mm radius
£27.95
Ex VAT: £23.29
- Model: C094X1/4TC
- Weight: 76.00g
- EAN: 5027654017067
| Trend Attributes | |
| Bearing Diameter (metric) | 9.5 |
| Cut Length (metric) | 12.7 |

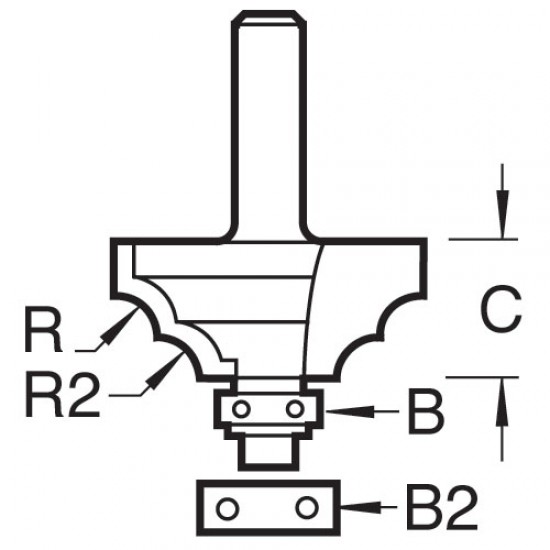

| Drawing Dimensions | D=28 mm|C=1/2 inch|C=12.7 mm|B=9.5 mm|B2=12.7 mm|R=4 mm|R2=4 mm|OL=64 mm|Shank Diameter=1/4 inch| |
| Shank Diameter | 1/4 |

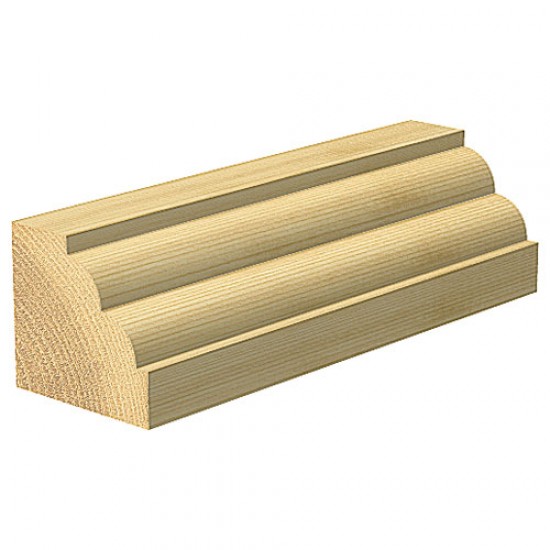

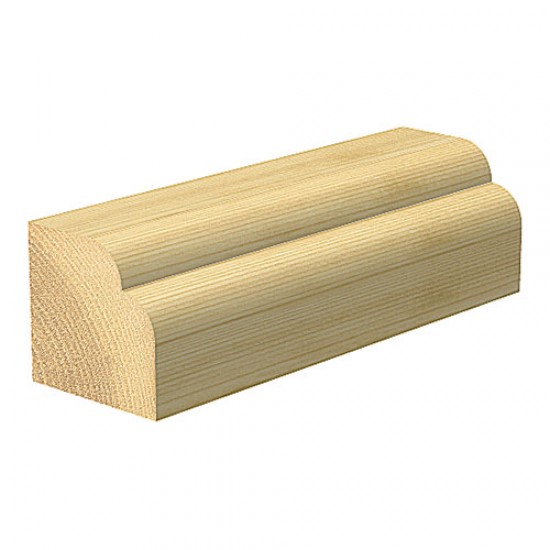

This double ribbed ovolo style is an alternative to the rounding over cutter. If the cutter is lowered, a top quirk can be produced.
